Model Type RC



SPECIFICATIONS

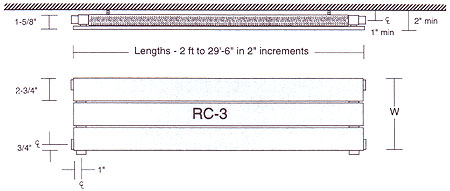

RC panel radiators are manufactured in the USA from cold rolled steel and ceiling mounted. The panels are finished in a gloss powdercoat, and are available in many standard colors and over 100 optional colors. These panels are made in lengths from 2’-0” to 29’-6”, and widths from 3” to 70”. Standard piping connections are 1/2” NPT for inlet and outlet piping, and 1/8” NPT for vents (3/4” NPT inlets and outlets are available by special order). For more complete RC panel specifications, please refer to the Runtal technical pages.

BTUH/FT RATINGS

Energy efficient as well as space saving, RC panel radiators are true radiant panels. These panels provide more comfort at a lower room temperature than convective heaters. Various average water temperatures (AWT) are included here for your convenience, but for more specific conditions use the appropriate correction factor with the 215°F rating. Please see the technical pages for the correction factor best suited to the design conditions.
BTUH/ft Ratings @ 65°F EAT
MODEL HEIGHT inches DEPTH inches 215°F 180°F 140°F
RC-2 5.7 1.6 270 190 110
RC-3 8.6 1.6 400 290 170
RC-4 11.5 1.6 530 380 220
RC-5 14.4 1.6 660 470 270
RC-6 17.3 1.6 800 560 320
RC-7 20.2 1.6 940 660 380
RC-8 23.1 1.6 1070 760 430
RC-9 26.0 1.6 1203 847 485
RC-10 29.0 1.6 1340 943 540

MOUNTING SYSTEMS

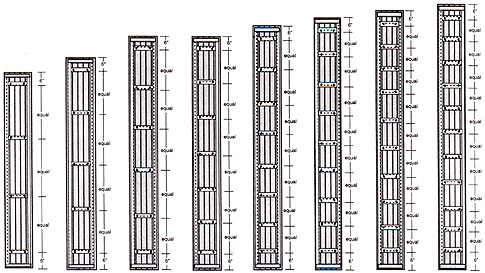

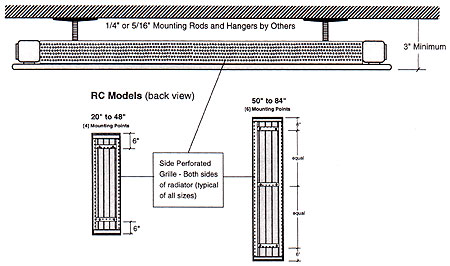

RC panels are ceiling mounted with threaded rod, nuts and ceiling supports, which are supplied by others. Please see the RC technical pages for more complete mounting details.


Click Here For Printable PDF
